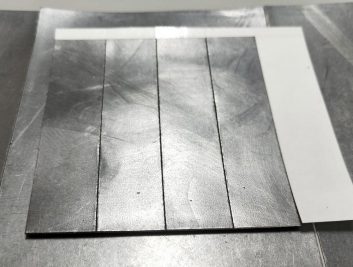

Graphite Tape
Graphite Tape:
Features and Benefits
-
High thermal conductive of : 10W/mK
-
Low thermal resistance
Typical Application
-
CPU, Power supplies, LED, LCD
DR10 Series products are high-performance and heat-conductive interface materials. They can be used for applications WITHOUT electrical insulation requirement. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximized heat conduction from heat source to heat sink.
Typical Properties of DR10 Series |
|||||
Product Name |
DR1003 |
DR1006 |
DR1010 |
DR1020 |
Test Method |
Material |
Natural Graphite |
||||
Color |
Black |
Visual |
|||
Thickness |
0.0035”(0.089mm) |
0.006” (0.152mm) |
0.010” (0.254mm) |
0.020”(0.508mm) |
|
Thickness Tolerance |
+/- 10% |
+/- 10% |
+/- 5% |
+/- 5% |
|
Density |
2.2g/cc |
||||
Hardness |
85 Shore A |
ASTM D2240 |
|||
Typical Thermal Conductivity (In Z axis) |
10.0 W/ m-K |
ASTM D5470 |
|||
Typical Thermal Conductivity (In X-Y axis) |
150 W/ m-K |
ASTM D5470 |
|||
Tensile Strength |
270psi (1800kpa) |
270psi (1800kpa) |
470psi (3200kpa) |
470psi (3200kpa) |
ASTM D5470 |
Thermal Resistance (@100psi) |
0.012in² ºC/W |
0.016in² ºC/W |
0.042in² ºC/W |
0.087in² ºC/W |
ASTM D5470 |
Temperature Range |
-200ºC ~ 300ºC |
||||
