LED Lighting

LED Bulbs 球泡灯

Basic parameter/基本参数

Power 功率 3-120W
Light source 光源 2835 / 5630 / 3014
Input voltage 输入电压 AC85-246V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 90Lm/W
CRI 显色指数 Ra > 70
Beam angle 发光角度 120º
Housing material 外壳材质 散热器(陶瓷, 铝) +PC
IP 防护等级 IP40/IP44
Optional function 可选功能 Emergent microwave induction/dimming and adjust colour-temperature/sound control/human infrared induction/radar induction 应急/雷达感应/调光调色温/声控/红外感应/调光

Energy saving

  • Energy conservation and environmental protection: Over 60% of energy than traditional fluorescent lamp, no ultraviolet and infrared radiation, not contain harmful substances such as Lead and Mercury.
  • LED constant current and voltage (low voltage), quick start, no flicker, children’s myopia prevention, effectively to protect the eyes.
  • The shell is made of high quality aluminium production, with anodized surface, excellent heat dissipation, the effective protection of LED, and lifespan to 30000 hours.
  • Lamps have better colour rendering; the light is softer, and luminous efficiency is higher.
    Reasonable optical design: the even light colour, without aperture, no dark space.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 节能环保:比传统荧光灯节能60% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • 清静舒适, 无声电流。
  • LED恒流恒压(低压)工作, 启动快,无频闪,预防少儿近视, 有效保护眼睛。
  • 合理光学设计:光色均匀, 无光圈, 无暗区。
  • 显色性更好,光线更柔和, 发光效率更高。
  • 显色性更好,光线更柔和, 发光效率更高。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

LED Tube light 日光灯

Basic parameter/基本参数

Power 功率 6-28W
Light source 光源 2835/3014
Input voltage 输入电压 AC85-277V
Frequency range 频率范围 50/60Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 90Lm/W
CRI 显色指数 Ra > 70
Beam angle 发光角度 120º 180º
PC PC罩 Clear / frosted 透明/乳白
IP 防护等级 IP40
Size 尺寸 L600mm, L900mm, L1200mm
Optional function 可选功能 Emergent microwave induction/dimming and adjust colour-temperature/sound control/human infrared induction/radar induction 应急/雷达感应/调光调色温/声控/红外感应/调光

Energy saving

  • Energy conservation and environmental protection: Over 60% of energy than traditional fluorescent lamp, no ultraviolet and infrared radiation, not contain harmful substances such as Lead and Mercury.
  • LED constant current and voltage (low voltage), quick start, no flicker, children’s myopia prevention, effectively to protect the eyes.
  • LED constant current and voltage (low voltage), quick start, no flicker, children’s myopia prevention, effectively to protect the eyes.
  • xxxxThe shell is made of high quality aluminium production, with anodized surface, excellent heat dissipation, the effective protection of LED, and lifespan to 30000 hours.
  • Lamps have better colour rendering; the light is softer, and luminous efficiency is higher.
  • Reasonable optical design: the even light colour, without aperture, no dark space.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 节能环保:比传统荧光灯节能60% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • LED恒流恒压(低压)工作, 启动快,无频闪,预防少儿近视, 有效保护眼睛。
  • 外壳采用优质铝材制作, 表面阳极氧化处理, 散热性能更好, 有效保护LED, 使灯具寿命超过30000小时。
  • 显色性更好,光线更柔和, 发光效率更高。
  • 合理光学设计:光色均匀, 无光圈, 无暗区。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

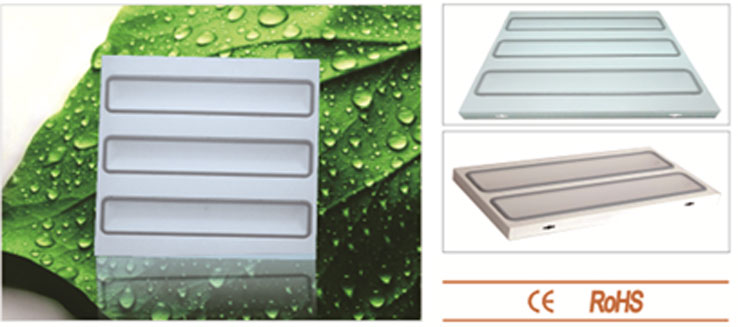

LED Grille Light 格栅灯

Basic parameter/基本参数

Power 功率 16-72W
Light source 光源 2835
Input voltage 输入电压 AC100-246V
Frequency Range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 85Lm/W
CRI 显色指数 Ra > 70
Beam angle 发光角度 120º
IP 防护等级 IP41
Size 尺寸 300*600/300*1200/600*600/600*1200mm

Energy saving

  • Energy conservation and environmental protection: Over 60% of energy than traditional fluorescent lamp, no ultraviolet and infrared radiation, not contain harmful substances such as Lead and Mercury.
  • LED constant current and voltage (low voltage), quick start, no flicker, children’s myopia prevention, effectively to protect the eyes.
  • The shell is made of high quality aluminium production, with anodized surface, excellent heat dissipation, the effective protection of LED, and lifespan to 30000 hours.
  • Lamps have better colour rendering; the light is softer, and luminous efficiency is higher.
  • Reasonable optical design: the even light colour, without aperture, no dark space.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 节能环保:比传统荧光灯节能60% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • LED恒流恒压(低压)工作, 启动快,无频闪,预防少儿近视, 有效保护眼睛。
  • 外壳采用优质铝材制作, 表面阳极氧化处理, 散热性能更好, 有效保护LED, 使灯具寿命超过30000小时。
  • 显色性更好,光线更柔和, 发光效率更高。
  • 合理光学设计:光色均匀, 无光圈, 无暗区。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

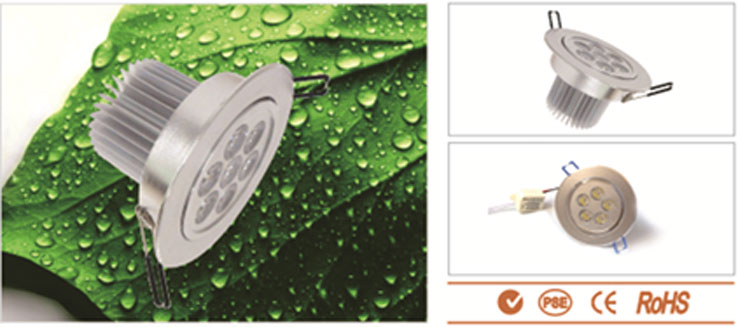

LED Ceiling light series天花灯系列

Basic parameter/基本参数

Power 功率 5-20W
Light source 光源 2835 / 5630 / 3014
Input voltage 输入电压 AC85-277V
Frequency range 频率范围 50/60Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 85Lm/W
CRI 显色指数 Ra >70
Beam angle 发光角度 90º
Operating environment 工作环境温度
IP 防护等级 -20 ~65⁰C
Optional function 可选功能 Emergent microwave induction/dimming and adjust colour-temperature/sound control/human infrared induction/radar induction 应急/雷达感应/调光调色温/声控/红外感应/调光

Energy Saving

  • It can save 60% energy than incandescent lamp, 40% than fluorescent lamps, no UV-light, infrared, etc., without Lead and Mercury.
  • Strong shock resistance and punching resistance, which meets security lighting requirements in public places.
  • Reasonable optical design, it uses LEDs with low brightness decay, and high colour rendering index, which makes the light uniform and no dark area.
  • It adopts modern aesthetics filament line design, fins to add more heat dissipation area, light weight with the fins’ high quality Aluminium Alloy structure.
  • Design with constant current and wide voltage range to make high light efficiency. It keeps the product stable and reduce the power consumption; thus it can be used all over the world.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 节能环保:比白炽灯节能60%以上,比荧光灯节能40% 以上, 无 紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • 耐冲压,抗震能力强,适合公共场所安全灯具要求。
  • 合理的光学设计。
  • 采用现代美学流线造型设计, 结构紧凑,外形美观;采用优质铝合金片组合,鳍片式散热, 最大限度增加了散热面积, 把重量减到更轻。
  • 产品电源采用宽电压, 恒流技术设计,光电转换效率高, 既保证了产品的稳定,又大大减少了电能消耗, 全球通用。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

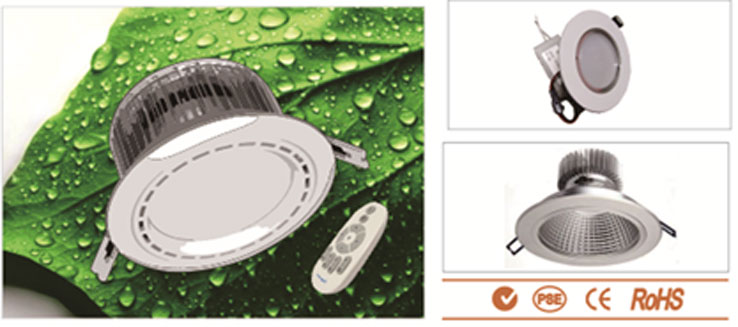

LED Downlight 筒灯

Basic parameter/基本参数

Power 功率 3-40W
Light source 光源 2835/5630/3014
Input voltage 输入电压 AC85-277V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 85 Lm/W
CRI 显色指数 Ra >70
Beam angle 发光角度 90º
Operating environment 工作环境温度 -20 ~ 65ºC
IP 防护等级 IP40-IP44
Optional function 可选功能 Emergent microwave induction/dimming and adjust color-temperature/sound control/human infared induction/radar induction 应急/雷达感应/调光调色温/声控/红外感应/调光

Energy saving

  • It can save 60% energy than incandescent lamp, 40% than fluorescent lamps, no UV-light, infrared, etc., without Lead and Mercury.
  • Strong shock resistance and punching resistance, which meets security lighting requirements in public places.
  • Reasonable optical design, it uses LEDs with low brightness decay, and high colour rendering index, which makes the light uniform and no dark area.
  • It adopts modern aesthetics filament line design, fins to add more heat dissipation area, light weight with the fins’ high quality Aluminium Alloy structure.
  • Design with constant current and wide voltage range to make high light efficiency. It keeps the product stable and reduce the power consumption; thus it can be used all over the world.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 节能环保:比白炽灯节能60%以上,比荧光灯节能40% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • 耐冲压,抗震能力强,适合公共场所安全灯具要求。
  • 合理的光学设计。
  • 采用现代美学流线造型设计, 结构紧凑,外形美观;采用优质铝合金片组合,鳍片式散热, 最大限度增加了散热面积, 把重量减到更轻。
  • 产品电源采用宽电压, 恒流技术设计,光电转换效率高, 既保证了产品的稳定,又大大减少了电能消耗, 全球通用。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

LED Panel light 面板灯

Basic parameter/基本参数

Power 功率 10-72W
Light source 光源 2835/5630/3014
Input voltage 输入电压 AC100-246V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 85Lm/W
CRI 显色指数 Ra > 70
Beam angle 发光角度 120º
Luminescence uniformity 发光均匀度 > 90
IP 防护等级 IP41/IP44/IP65/IP67
Size 尺寸 200mm/300mm/600mm/1200mm
Optional function 可选功能 Emergent microwave induction/dimming and adjust colour-temperature/sound control/human infrared induction/radar induction 应急/雷达感应/调光调色温/声控/红外感应/调光

Energy saving

  • Light source with original imported ones.
  • This kind of products have standard configuration with high thermal conductivity Aluminium material. The side light-emitting Panel lights are configured with Mitsubishi LGP (laser cutting technology), a Chimei from Taiwan diffusion plats, which ensures better cooling, emitting and luminance uniformity.
  • Lifespan up to 30000 hours, more than three times the common fluorescent lamps.
  • Energy conservation and environmental protection, not contain harmful substances, will not produce ultraviolet and infrared radiation.
  • Lamps have better colour rendering. The light is softer, and luminous efficiency is higher.
  • This series product thickness is not more than 11mm, but general panel lights can do ultra-thin state (can reach 6mm), protection grade can reach IP67.
  • Installation methods: hanging, wall box, and flushbonading can be available.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 光源标配进口芯片光源。
  • 本类产品采用高导热航空铝材质, 侧发光面板灯类标配三菱导光板(激光布点技术)、台湾奇美扩散板。 散热性能更高、亮度及发光均匀度更有保障。
  • 寿命长超过30000小时, 是普通荧光灯的3倍以上。
  • 节能环保, 不含有害物质, 不会产生紫外线、红外光等辐射, 有效保护被照物。
  • 显色性更好, 光线更柔和, 发光效率更高。
  • 本系列产品厚度不超过11mm, 但是常规可做到超薄状态(可达到6mm), 防护等级可达到IP67。
  • 安装方式:吸顶式、壁框式、嵌入式,可自选。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

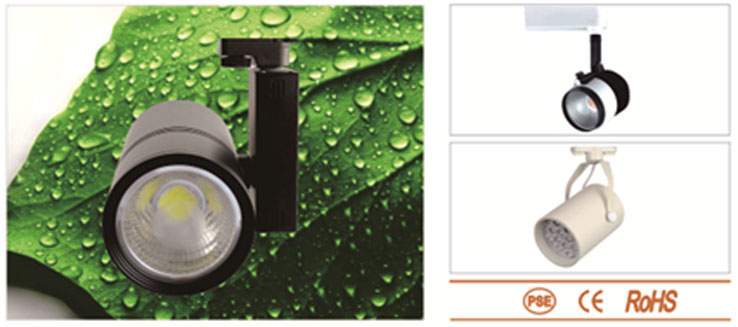

LED Tunnel light 轨道灯

Basic parameter/基本参数

Power 功率 3-36W
Light source 光源 仿流明(Imitation Lumens)/COB
Input voltage 输入电压 AC100-265V
Frequency range 频率范围 50/60Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 85 Lm/W
CRI 显色指数 Ra > 80
Beam angle 发光角度 15º ,30º, 45º,60º

Energy saving

  • Good aluminium housing, good heat dissipation, low light decay and long life.
  • LED brand cold light source, no radiation, no heavy metal pollution, high performance, pure colour, multi-colour, high brightness, low flicker, energy saving and environmental protection to our life.
  • Efficient optical lens, low light loss and better illumination.
  • High-power transformer to integrate the lamp, electrical appliances and lighting perfectly.
  • Compact and convenient, elegant, easy to install and replace.
  • Streamline design, beautiful appearance, easy to install.
  • Energy-saving and durable (it is 1/10 incandescent lamp consumption, lifespan can be more than 100 times). Ordinary 70W metal halide we put it down to 10W from 70W.
  • Shell heat, safer than traditional halogen with prolonged use.
  • Wide voltage constant current circuit, no flicker, stable and reliable.
  • Proof dust and insects, not easily deformed, emitting angle 15º.

Applications

Suitable for: school, family, hospitals, hotels, office buildings, shopping mall, corridor, museums, libraries and other places.

产品特性

  • 优质铝材外壳, 散热性好,光衰少,寿命长。
  • 品牌LED冷光源, 无辐射, 无重金属污染, 性能卓越, 色彩纯正、丰富, 高亮度, 低频闪, 节能又环保更健康。
  • 高效光学级透镜, 光损更小, 照度更好。
  • 大功率 变压器, 使灯具, 电器, 光源完美结合。
  • 轻巧简便, 美观大方, 易于安装与更换。
  • 流线形设计, 外形美观, 安装便捷。
  • 节能耐用(耗电仅普通白炽灯的1/10, 寿命却可延长100倍以上)。普通70W的金卤灯我们把它从70W 降到10W。
  • 外壳抗热, 长时间的使用比传统卤素灯更安全。
  • 宽压恒流电路, 无频闪, 性能稳定、可靠。
  • 防尘、防虫,不易变形, 发光角度15º。

适合场所:

适用于:学校、家庭、医院、酒店、商场、走廊、博物馆、图书馆等场所。

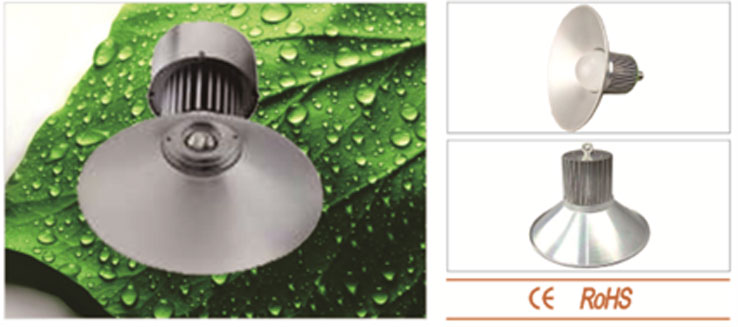

LED High bay light 工矿灯

Basic parameter/基本参数

Power 功率 30-150W
Chip 芯片 CREE/OSRAM/EPISTR
Input voltage 输入电压 AC100-246V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 90Lm/W
CRI 显色指数 Ra > 70
Operating environment 工作环境温度 -45 ~ 60ºC
Housing material 外壳材质 Fins’ high quality Aluminum Alloy structure + Lens 鳍片散热器 + 透镜
IP 防护等级 IP40/IP44

Energy saving

  • The energy conservation and environmental protection: Over 60% of energy than traditional fluorescent lamp, no ultraviolet and infrared radiation, not contain harmful substances such as Lead and Mercury.
  • The shell is made of high-quality aluminium material, surface anodic oxidation, open the cooling structure, good heat dissipation performance, effectively to protect the LED, and lifespan to 30000 hours.
  • Better colour rendering, the light is more soft, and luminous efficiency is higher.
  • Reasonable optical design: the even light colour, without aperture, no dark space.

Applications

Applicable to the car workshop, workshop, warehouse, highway toll station, gas station, large supermarket, exhibition hall, gymnasium and other lighting places.

产品特性

  • 节能环保:比传统荧光灯节能60% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • 外壳采用优质铝材制作, 表面阳极氧化处理,开放式散热结构,散热性能优良, 有效保护LED, 使灯具寿命超过30000小时。
  • 显色性更好,光线更柔和, 发光效率更高。
  • 合理光学设计:光色均匀, 无光圈, 无暗区。

适合场所:

适用于车间、厂房、库房、公路收费站、加油站、大型超市、展览馆、体育馆及其他需要照明的场所。

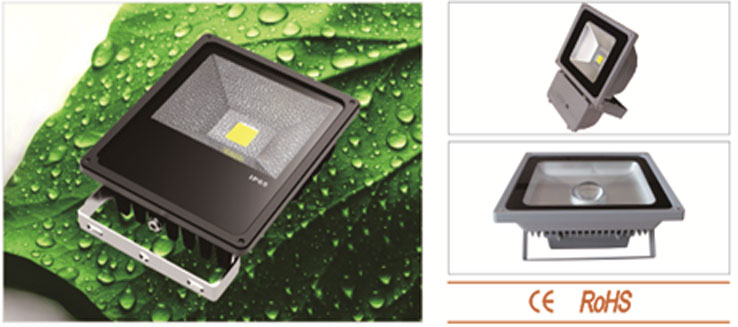

LED Flood light 投光灯

Basic parameter/基本参数

Power 功率 10-200W
Chip 芯片 CREE/OSRAM/EPISTR
Input voltage 输入电压 AC100-246V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 100Lm/W
CRI 显色指数 Ra > 70
Operating environment 工作环境温度 -45 ~ 60ºC
Housing material 外壳材质 High quality Aluminum Alloy structure + Tempered glass 散热器 + 钢化玻璃
IP 防护等级 IP65

Energy saving

  • The energy conservation and environmental protection: Over 60% of energy than traditional fluorescent lamp, no ultraviolet and infrared radiation, not contain harmful substances such as Lead and Mercury.
  • The shell is made of high-quality aluminium material, surface anodic oxidation treatment, open the cooling structure, good heat dissipation performance, effectively to protect the LED, and lifespan to 30000 hours.
  • Lamps have better colour rendering. The light is softer, and luminous efficiency is higher.
  • Reasonable optical design: the even light colour, without aperture, no dark space.

Applications

Applicable to the bridge, park, billboards, sculpture, square and other places lighting, especially suitable for urban landscape, building on the surface of lighting.

产品特性

  • 节能环保:比传统荧光灯节能60% 以上, 无紫外光、红外光等辐射, 不含铅、汞等有害物质。
  • 外壳采用优质铝材制作, 表面阳极氧化处理,开放式散热结构,散热性能更好, 有效保护LED, 使灯具寿命超过30000小时。
  • 显色性更好,光线更柔和, 发光效率更高。
  • 合理光学设计:光色均匀, 无光圈, 无暗区。

适合场所:

适用于桥梁、公园、雕塑、广场、广告牌等场所照明,尤其适用于城市景观、建筑表面照明。

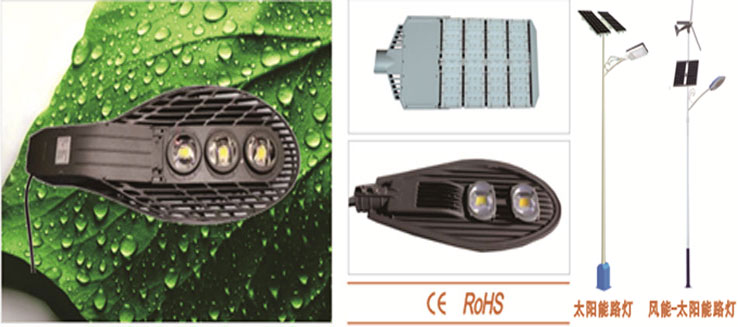

LED Street light 路灯

Basic parameter/基本参数

Power 功率 20-250W
Light source 光源 CREE/OSRAM/EPISTR
Input voltage 输入电压 AC100-246V
Frequency range 频率范围 50/60 Hz
PF 功率因素 > 0.9
CCT 色温 2700-6500K
Luminous efficiency 发光效率 > 100Lm/W
CRI 显色指数 Ra > 70
Operating environment 工作环境温度 -45 ~ 60ºC
Housing material 外壳材质 Die casting aluminium + PMMA + Lens 压铸铝 + PMMA + 透镜
IP 防护等级 IP65/IP67

Energy saving

  • Long life: more than 30000 hours.
  • High light efficiency: use the chip of more than 100 Lm/W, can save more than 75% energy compared with traditional pressure sodium lamps.
  • The power supply circuit are all made of high quality original imported components; each LED has overcurrent protection separately, no need to worry damage.
  • Not contain any harmful metallic mercury, not like high voltage sodium lamp or metal halide lamp when scrapped, which does harm to the environment.
  • LED street lamp has unique secondary optical design; LED street lamp light to the lighting area, further to improve the efficiency of the light in order to achieve energy saving purpose.
  • LED street lamp light’s Color Rendering Index (CRI) is much higher than the sodium lamps; the CRI of high voltage sodium lamp only is around 23, but colour rendering index of LED street light above 75.
  • Low maintenance cost: compared with the traditional street light, LED street lights maintenance cost is extremely low.

产品特性

  • 寿命长:能使用30000 小时以上。
  • 光效高:采用 ≥100 LM以上的芯片, 相对于传统高压钠灯能节能75%以上。
  • 驱动电源全部采用高质量进口元器件,每颗LED 都有单独过流保护, 无须担心损坏。
  • LED不含有害金属汞(高压钠灯或金属卤化物灯在报废时对环境造成危害)。
  • LED路灯有独特的二次光学设计, 将LED路灯的光照射到所需照明的区域, 进一步提高了光照效率, 以达到节能目的。
  • LED路灯的光显色性比高压钠灯高许多, 高压钠灯显色指数只有23左右,而LED路灯显色指数达到75以上。
  • 维护成本低:相对于传统路灯,LED路灯维护成本极低。

Other Indoor Light Series 其他室内照明产品

Other Outdoor Engineering Lighting Series 其他户外工程系列
